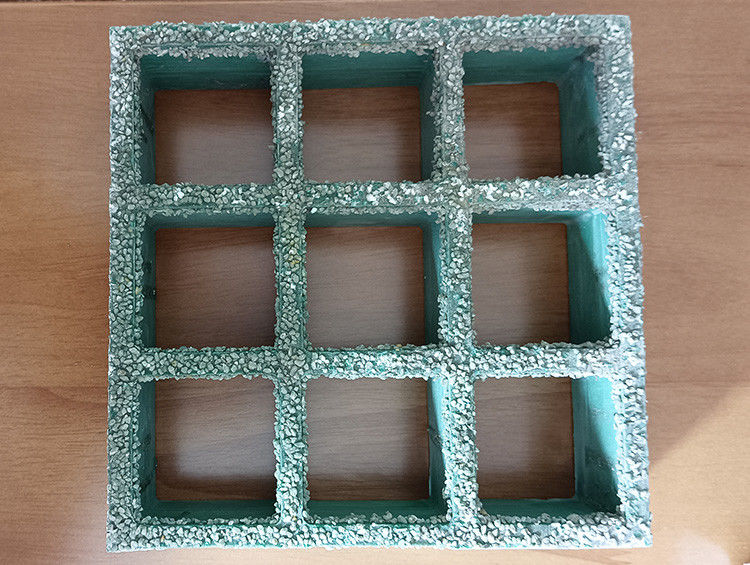

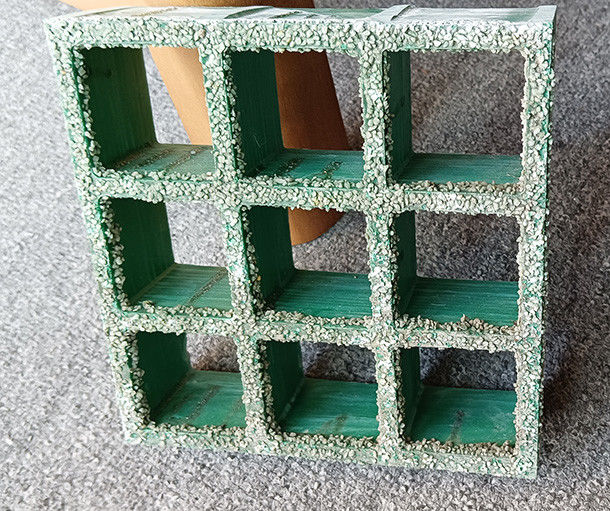

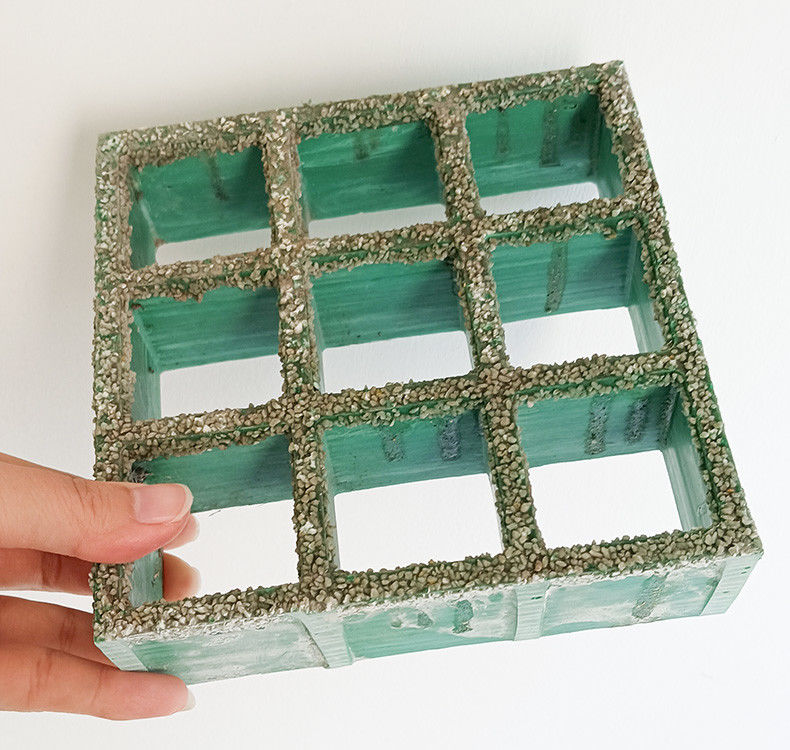

Green Fiber Glass Material 38*38*38mm Thickness Sanded Frp Grating Anti-Slip Grille
Product Description
Fiberglass reinforced plastic grating (also known as FRP grating, glass reinforced plastic grating or fiberglass grating) is a composite material manufactured by combining a matrix of resin and fiberglass. Fiberglass grating does not corrode like steel grating and is therefore used in corrosive environments to reduce maintenance costs. Our factory can produce High Strength FRP Molded Grating / Fiberglass Plastic Grating according to customer requirement.
| Product Name |
FRP grating |
| Material |
Fibreglass Reinforced Plastic (FRP) |
| Brand Name |
Yue Zhong Xin |
| Place of Origin |
Guangshui City, Hubei Province, China |
| Colour |
Customer specified |
| Size |
38*38*38mm, customizable bore diametre |
| Technique |
Moulded Progress |
| Standard |
GB, ASTM, E23 |
| Resin type |
GP/ISO/VE |
| Surface |
needled mat, polyester surface mat, combination reinforcing mat |
| Application |
Livestock, Car-wash, Wastewater Plant, Civil engineering, |
| Certificate |
High-tech Enterprise Certificate authorized by government |
Customizable Size
Fiberglass Grating has many sizes for you to choose.
Quality and Parametres:
|
Testing results for physical properties:
|
|
Testing Items
|
Unit
|
Testing results
|
Testing standard
|
|
Density
|
g/cm3
|
1.85-1.9
|
GB/T5130-1997
|
|
Water absorption
|
%
|
0.37
|
GB/T5130-1997
|
|
Flexural strength (perpendicular to fiberglass direction)
|
MPa
|
705
|
GB/T5130-1997
|
|
Flexural modulus(perpendicular to fiberglass direction)
|
Gpa
|
18.9
|
GB/T5130-1997
|
|
Tensile strength
|
Mpa
|
581
|
GB/T5130-1997
|
|
Tensile modulus
|
Gpa
|
22
|
GB/T5130-1997
|
|
Flame retardant rating
|
|
V0/V1
|
UL94
|
|
Dielectric breakdown voltage
|
KV
|
14.98
|
AGB/T5130-1997
|
Company Profile:
Hubei Yuezhongxin New Composite Material Manufacturing Co., Ltd., founded in 2010, is providing customers with high-quality and affordable Fibreglass Reinforced Plastic (FRP) products, including FPR grille, pultruded pile, molded profiles, non-conductive ladder, square tube, and a wide variety of accessories.
Supply Ability
2, 000 Metre(s)/Week on average
Less amount if your product needs a new mould
Packing & Delivery
Packaging Details: Film Package on Pallet
Port: Shenzhen / Wuhan
Lead time: 3 - 8 days
By sea, By air or By express, you can have your own choice.
We try our best to pack and protect the goods according to customer's requirement on the basis of international logistic standard.
FAQ
Q1: Are you a trader or manufacturer?
A1: We are an OEM with our own manufacturing machines and equipment, operated by around technicians and operations in 3 workshops located in Guangshui City, Hubei Province, China.
Q2: What’s your terms of payment?
A2: Usually, we accept T/T, irrevocable L/C at sight. For regular order, we prefer 30% in advance and then the remaining 70% before shipment from the factory.
Q3: How do you control the quality?
A3: We have a quality department to inspect quality daily. We also support third party test at every deal and the certificate of our FRP products are exhibited in the company website.
Q4: What about lead or shipping time?
A4: The lead time depends on quantity you ordered, but generally we complete the shipment within 8 days. However, lead time will be longer if your demand is special.
Q5: How to pay sample and express charges?
A5: We provide samples for free and you only need to pay the express charges. We have some cooperated express companies to help if necessary.
